Filter JSON Data in Android Application using PHP and MySQL

Hi there, here I bring you this filter JSON lesson in which you can learn how to fetch data from the server database and then either sort it or filter it through JSON which would be displayed in the form of ListView. In this filter JSON project as an example, we’ll be creating a database of laptops on the server, fetch the whole lot of data and then sort or filter JSON received from the server. I’ll begin with the server side tasks. So let’s get started.

Setting the server for the project

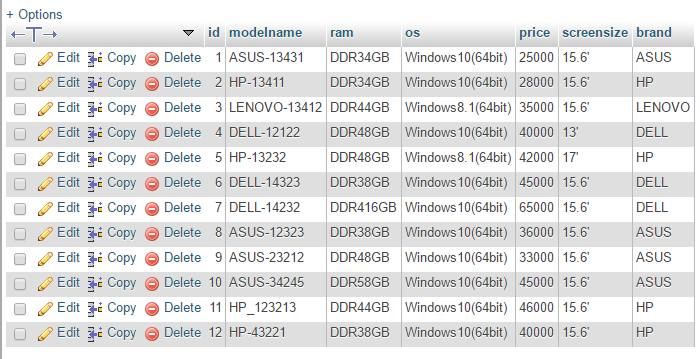

First of all we need to set up the database on the server as I have already in the image below. Just download the db below named laptop.sql and import it to your PhpMyAdmin.

Download Laptop.SQL

Now when your db is set up. Lets write Php scripts to fetch the data from the database.

Creating PHP Scripts

First create a php file named Constants.php

<?php

/**

* Created by PhpStorm.

* User: Manish

* Date: 9/3/2016

* Time: 5:33 PM

define('DB_HOST','Your Host name');

define('DB_USERNAME','Your database Username');

define('DB_PASSWORD','Your database Password');

define('DB_NAME','Your database name');

Next, create a php file named DbConnect.php

<?php

/**

* Created by PhpStorm.

* User: Manish

* Date: 9/3/2016

* Time: 5:36 PM

class DbConnect

{

private $con;

function __construct()

{

}

function connect(){

include 'Constants.php';

$this->con = new mysqli(DB_HOST,DB_USERNAME,DB_PASSWORD,DB_NAME);

if(mysqli_connect_errno()){

echo 'Failed to connect to mysql'.mysqli_connect_errno();

}

return $this->con;

}

Next, create a php file named DbOperation.php

<?php

/**

* Created by PhpStorm.

* User: Manish

* Date: 9/3/2016

* Time: 5:40 PM

class DbOperation

{

private $con;

function __construct()

{

require_once 'DbConnect.php';

$db =new DbConnect();

$this->con = $db->connect();

}

public function getLaptops(){

$stmt = $this->con->prepare("SELECT * FROM laptop ");

$stmt->execute();

$result = $stmt->get_result();

return $result;

}

Finally, create a php file named getData.php

<?php

/**

* Created by PhpStorm.

* User: Manish

* Date: 9/3/2016

* Time: 9:00 PM

require 'DbOperation.php';

$response = array();

$db = new DbOperation();

$result = $db->getLaptops();

$response['laptops'] = array();

while($row = mysqli_fetch_array($result)){

$temp = array();

$temp['id'] = $row['id'];

$temp['modelname'] = $row['modelname'];

$temp['ram'] = $row['ram'];

$temp['os'] = $row['os'];

$temp['price'] = $row['price'];

$temp['screensize'] = $row['screensize'];

$temp['brand'] = $row['brand'];

array_push($response['laptops'],$temp);

}

echo json_encode($response);

If everything is fine you will see the data in JSON format, when you will run this script. If you can also skip this part if you want to use my database. Below is my live URL that you can use in this Filter JSON Tutorial.

http://internetfaqs.net/laptops/getData.php

Now let’s begin the android part.

Creating an Android Project for our Filter JSON App

Create a new Android project named JSONFilterApp. As your gradle is built and files are loaded, add the following dependency to your app level gradle. This will allow us to implement the php script in android.

compile 'com.android.volley:volley:1.0.0'

As usual, we shall begin with configuring the activity_main.xml and MainActivity.java. Add the following codes into the respective files.

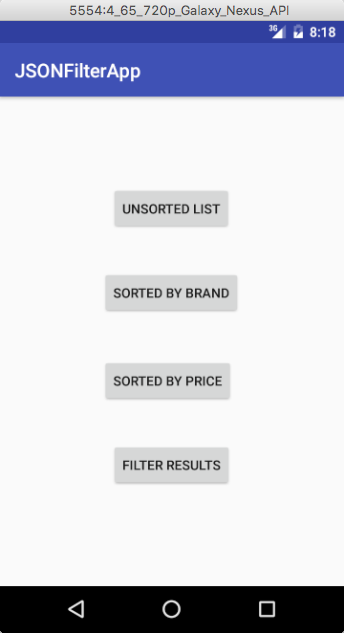

Here’s the activity_main.xml. It consists of four buttons leading to different activities. These activities will display the data in sorted and filtered manners.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="com.example.manish.jsonfilterapp.MainActivity">

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="UNSORTED LIST"

android:id="@+id/buttonUnsortedlist"

android:layout_alignParentTop="true"

android:layout_centerHorizontal="true"

android:layout_marginTop="77dp" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="SORTED BY BRAND"

android:id="@+id/buttonSortedbybrand"

android:layout_below="@+id/buttonUnsortedlist"

android:layout_centerHorizontal="true"

android:layout_marginTop="40dp" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Sorted by Price"

android:id="@+id/buttonSortedbyprice"

android:layout_marginTop="44dp"

android:layout_below="@+id/buttonSortedbybrand"

android:layout_alignStart="@+id/buttonSortedbybrand" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Filter Results"

android:id="@+id/buttonFilterresults"

android:layout_below="@+id/buttonSortedbyprice"

android:layout_centerHorizontal="true"

android:layout_marginTop="40dp" />

</RelativeLayout>

Here’s the MainActivity.java. In here, the data from the server is fetched as the getData.php is implemented through the method getLaptops() and the stored into SharedPreferences as String.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

package com.example.manish.jsonfilterapp;

import android.app.ProgressDialog;

import android.content.Context;

import android.content.Intent;

import android.content.SharedPreferences;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.widget.Button;

import android.widget.ListView;

import android.widget.TextView;

import android.widget.Toast;

import com.android.volley.Request;

import com.android.volley.RequestQueue;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.StringRequest;

import com.android.volley.toolbox.Volley;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.ArrayList;

import java.util.Collections;

import java.util.Comparator;

import java.util.HashSet;

import java.util.List;

import java.util.Set;

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

Button buttonUnsortedlist,buttonSortedbybrand,buttonSortedbyprice,buttonFilterresults;

ProgressDialog progressDialog;

TextView textView; SharedPreferences sharedPreferences;

String URL = "Your URL for getData.php";

String mn;

LaptopAdapter laptopAdapter;

ArrayList<Laptop> laptopList= new ArrayList<Laptop>();

String jsonString;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

progressDialog = new ProgressDialog(this);

buttonFilterresults = (Button) findViewById(R.id.buttonFilterresults);

buttonSortedbybrand = (Button) findViewById(R.id.buttonSortedbybrand);

buttonSortedbyprice = (Button) findViewById(R.id.buttonSortedbyprice);

buttonUnsortedlist = (Button) findViewById(R.id.buttonUnsortedlist);

buttonSortedbybrand.setOnClickListener(this);

buttonUnsortedlist.setOnClickListener(this);

buttonFilterresults.setOnClickListener(this);

buttonSortedbyprice.setOnClickListener(this);

getLaptops();

sharedPreferences = getSharedPreferences("SHARED_PREF_NAME", Context.MODE_PRIVATE);

}

@Override

public void onClick(View v) {

if(v==buttonUnsortedlist){

startActivity(new Intent(this,UnsortedActivity.class));

}

if(v==buttonSortedbybrand){

startActivity(new Intent(this,Sortedbybrand.class));

}

if(v==buttonSortedbyprice){

startActivity(new Intent(this,Sortedbyprice.class));

}

if(v==buttonFilterresults){

startActivity(new Intent(this,Filterresults.class));

}

public void getLaptops() {

progressDialog.setMessage("Fetching data from the Server...");

progressDialog.show();

StringRequest stringRequest = new StringRequest(Request.Method.POST, URL,

new Response.Listener<String>() {

@Override

public void onResponse(String response) {

progressDialog.dismiss();

Toast.makeText(MainActivity.this, "Data Successfully Fetched", Toast.LENGTH_SHORT).show();

try {

JSONObject js = new JSONObject(response);

JSONArray jsonArray = js.getJSONArray("laptops");

jsonString = jsonArray.toString();

SharedPreferences.Editor editor = sharedPreferences.edit();

editor.putString("jsonString",jsonString);

editor.apply();

JSONArray sortedJsonArray = new JSONArray();

List<JSONObject> jsonValues = new ArrayList<JSONObject>();

for (int i = 0; i < jsonArray.length(); i++) {

jsonValues.add(jsonArray.getJSONObject(i));

}

Collections.sort( jsonValues, new Comparator<JSONObject>() {

//You can change "Name" with "ID" if you want to sort by ID

private static final String KEY_NAME = "modelname";

@Override

public int compare(JSONObject a, JSONObject b) {

String valA = new String();

String valB = new String();

try {

valA = (String) a.get(KEY_NAME);

valB = (String) b.get(KEY_NAME);

}

catch (JSONException e) {

//do something

}

return valA.compareTo(valB);

//if you want to change the sort order, simply use the following:

//return -valA.compareTo(valB);

}

});

for (int i = 0; i < jsonArray.length(); i++) {

sortedJsonArray.put(jsonValues.get(i));

}

} catch (JSONException e) {

e.printStackTrace();

}

new Response.ErrorListener() {

@Override

public void onErrorResponse(VolleyError error) {

}

});

RequestQueue request = Volley.newRequestQueue(this);

request.add(stringRequest);

}

Now, create a layout resource file named list_layout.xml using the following code. It will contain the layout of the list view in activity_unsorted.xml, activity_sortedbybrand.xml and so on.

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="vertical" android:layout_width="match_parent"

android:layout_height="match_parent"

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:id="@+id/textViewModelname"/>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:id="@+id/textViewRam"/>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:id="@+id/textViewOs"/>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:id="@+id/textViewPrice"/>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:id="@+id/textViewScreensize"/>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:id="@+id/textViewBrand"/>

</LinearLayout>

Now, create a class named Laptop using the following code.

package com.example.manish.jsonfilterapp;

/**

* Created by Manish on 9/4/2016.

public class Laptop {

public String modelname,ram,os,price,screensize,brand;

Laptop(String modelname, String ram, String os, String price, String screensize, String brand){

this.modelname = modelname;

this.ram = ram;

this.os = os;

this.price = price;

this.screensize = screensize;

this.brand = brand;

}

public String getModelname() {

return modelname;

}

public String getRam() {

return ram;

}

public String getOs() {

return os;

}

public String getPrice() {

return price;

}

public String getScreensize() {

return screensize;

}

public String getBrand() {

return brand;

}

Now, create a class named LaptopAdapter using the following code. It will serve as the adapter to the listView.

package com.example.manish.jsonfilterapp;

import android.app.Activity;

import android.content.Intent;

import android.util.Log;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

import android.widget.Button;

import android.widget.TextView;

import java.util.ArrayList;

/**

* Created by Manish on 9/4/2016.

public class LaptopAdapter extends ArrayAdapter<Laptop>

{

Activity activity;

int layoutResourceId;

ArrayList<Laptop> data=new ArrayList<Laptop>();

Laptop laptop;

public LaptopAdapter(Activity activity, int layoutResourceId, ArrayList<Laptop> data) {

super(activity, layoutResourceId, data);

this.activity=activity;

this.layoutResourceId=layoutResourceId;

this.data=data;

}

@Override

public View getView(int position, View convertView, ViewGroup parent) {

View row=convertView;

LaptopHolder holder=null;

if(row==null)

{

LayoutInflater inflater=LayoutInflater.from(activity);

row=inflater.inflate(layoutResourceId,parent,false);

holder=new LaptopHolder();

holder.modelname= (TextView) row.findViewById(R.id.textViewModelname);

holder.ram= (TextView) row.findViewById(R.id.textViewRam);

holder.os= (TextView) row.findViewById(R.id.textViewOs);

holder.price= (TextView) row.findViewById(R.id.textViewPrice);

holder.screensize= (TextView) row.findViewById(R.id.textViewScreensize);

holder.brand= (TextView) row.findViewById(R.id.textViewBrand);

row.setTag(holder);

}

else

{

holder= (LaptopHolder) row.getTag();

}

laptop=data.get(position);

holder.modelname.setText(laptop.getModelname());

holder.ram.setText(laptop.getRam());

holder.os.setText(laptop.getOs());

holder.price.setText(laptop.getPrice());

holder.screensize.setText(laptop.getScreensize());

holder.brand.setText(laptop.getBrand());

return row;

}

class LaptopHolder

{

TextView modelname,ram,os,price,screensize,brand;

}

Creating different activites for the Results

Now, create a new Empty Activity named UnsortedActivity which will display the unsorted list of laptops with their details. Now, configure the xml and java parts of this activity using the following codes.
Here’s the activity_unsorted.xml. It contains the ListView which will display the unsorted List of Laptops.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="com.example.manish.jsonfilterapp.UnsortedActivity">

<ListView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:id="@+id/unsortedlist"

android:layout_alignParentBottom="true"

android:layout_alignParentRight="true"

android:layout_alignParentEnd="true"

</RelativeLayout>

Here’s the UnsortedActivity.java. In here, the String containing the data is fetched through SharedPreferences and then manipulated through JSON.

package com.example.manish.jsonfilterapp;

import android.app.ProgressDialog;

import android.content.Context;

import android.content.SharedPreferences;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.widget.ListView;

import android.widget.TextView;

import android.widget.Toast;

import com.android.volley.Request;

import com.android.volley.RequestQueue;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.StringRequest;

import com.android.volley.toolbox.Volley;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.ArrayList;

import java.util.Arrays;

import java.util.Collections;

import java.util.Comparator;

import java.util.List;

import java.util.Set;

public class UnsortedActivity extends AppCompatActivity {

ListView unsortedlist;

LaptopAdapter laptopAdapter;String mn;

ArrayList<Laptop> laptopList= new ArrayList<Laptop>();

ArrayList<String> jsonString = new ArrayList<String>();

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_unsorted);

unsortedlist = (ListView) findViewById(R.id.unsortedlist);

SharedPreferences sp = getSharedPreferences("SHARED_PREF_NAME", Context.MODE_PRIVATE);

String jsonString = sp.getString("jsonString",null);

JSONArray jsonArray = null;

try {

jsonArray = new JSONArray(jsonString);

} catch (JSONException e) {

e.printStackTrace();

}

for(int i=0;i<jsonArray.length();i++){

try{

JSONObject jsonObject = jsonArray.getJSONObject(i);

String modelname = "Modelname:" + jsonObject.getString("modelname");

mn = modelname;

String ram = "Ram:" +jsonObject.getString("ram");

String os = "Os:" +jsonObject.getString("os");

String price = "Price:" + jsonObject.getString("price");

String screensize = "Screensize:" + jsonObject.getString("screensize");

String brand = "Brand:" + jsonObject.getString("brand");

Laptop laptop = new Laptop(modelname,ram,os,price,screensize,brand);

laptopList.add(laptop);

}catch (Exception e){

}

laptopAdapter=new LaptopAdapter(UnsortedActivity.this,R.layout.list_layout, laptopList);

unsortedlist.setAdapter(laptopAdapter);

laptopAdapter.notifyDataSetChanged();

}

Next, create another Empty Activity named Sortedbybrand and then configure its xml and java parts using the following codes:-
Here’s the activity_sortedbybrand.xml. It simply contains the ListView in which the list of laptops will be displayed.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="com.example.manish.jsonfilterapp.Sortedbybrand">

<ListView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:id="@+id/unsortedlist"

android:layout_alignParentBottom="true"

android:layout_alignParentRight="true"

android:layout_alignParentEnd="true"

</RelativeLayout>

Here’s the Sortedbybrand.java. In here, the String containing the data will be fetched through SharedPreferences and then sorted through JSON by brand.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

package com.example.manish.jsonfilterapp;

import android.content.Context;

import android.content.SharedPreferences;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.widget.ListView;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.ArrayList;

import java.util.Collections;

import java.util.Comparator;

import java.util.List;

public class Sortedbybrand extends AppCompatActivity {

ListView unsortedlist;

LaptopAdapter laptopAdapter;String mn;

ArrayList<Laptop> laptopList= new ArrayList<Laptop>();

String jsonString; JSONArray jsonArray;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_sortedbybrand);

unsortedlist = (ListView) findViewById(R.id.unsortedlist);

//data being retreived through SharedPreferences .

SharedPreferences sharedPreferences = getSharedPreferences("SHARED_PREF_NAME", Context.MODE_PRIVATE);

jsonString = sharedPreferences.getString("jsonString",null);

//conversion of jsonString to jsonArray

try {

jsonArray = new JSONArray(jsonString);

} catch (JSONException e) {

e.printStackTrace();

}

//sortedJSONArray would contain the sorted JSONObjects.

JSONArray sortedJsonArray = new JSONArray();

List<JSONObject> jsonValues = new ArrayList<JSONObject>();

for (int i = 0; i < jsonArray.length(); i++) {

try {

jsonValues.add(jsonArray.getJSONObject(i));

} catch (JSONException e) {

e.printStackTrace();

}

//The following section feeds the sorted data into the sortedJsonArray

Collections.sort( jsonValues, new Comparator<JSONObject>() {

//You can change "brand" with "price" if you want to sort by price

private static final String KEY_NAME = "brand";

@Override

public int compare(JSONObject a, JSONObject b) {

String valA = new String();

String valB = new String();

try {

valA = (String) a.get(KEY_NAME);

valB = (String) b.get(KEY_NAME);

}

catch (JSONException e) {

//do something

}

return valA.compareTo(valB);

//if you want to change the sort order, simply use the following:

//return -valA.compareTo(valB);

}

});

for (int i = 0; i < jsonArray.length(); i++) {

sortedJsonArray.put(jsonValues.get(i));

}

for(int i=0;i<sortedJsonArray.length();i++){

try {

JSONObject jsonObject = sortedJsonArray.getJSONObject(i);

String modelname = "Modelname:" + jsonObject.getString("modelname");

String ram = "Ram:" +jsonObject.getString("ram");

String os = "Os:" +jsonObject.getString("os");

String price = "Price:" + jsonObject.getString("price");

String screensize = "Screensize:" + jsonObject.getString("screensize");

String brand = "Brand:" + jsonObject.getString("brand");

//The data from each JSONObject is copied to an Object of Class Laptop

Laptop laptop = new Laptop(modelname,ram,os,price,screensize,brand);

//The objects of class Laptop are thereby added into the ArrayList i.e laptopList. This will be used

//as we'll set the adapter to the listView.

laptopList.add(laptop);

} catch (JSONException e) {

e.printStackTrace();

}

//the list_layout and laptopList are passed to the Adapter here.

laptopAdapter=new LaptopAdapter(Sortedbybrand.this,R.layout.list_layout, laptopList);

unsortedlist.setAdapter(laptopAdapter);

laptopAdapter.notifyDataSetChanged();

}

Similarly, create another Empty Activity named Sortedbyprice and configure the xml and java parts using the following codes.
Here’s the activity_sortedbyprice. It again contains the ListView as in activity_soredbybrand.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="com.example.manish.jsonfilterapp.Sortedbyprice">

<ListView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:id="@+id/unsortedlist"

android:layout_alignParentBottom="true"

android:layout_alignParentRight="true"

android:layout_alignParentEnd="true"

</RelativeLayout>

Here’s the Sortedbyprice.java. In here, the String containing the data will be fetched through SharedPreferences and then sorted through JSON by price.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

package com.example.manish.jsonfilterapp;

import android.content.Context;

import android.content.SharedPreferences;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.widget.ListView;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.ArrayList;

import java.util.Collections;

import java.util.Comparator;

import java.util.List;

public class Sortedbybrand extends AppCompatActivity {

ListView unsortedlist;

LaptopAdapter laptopAdapter;String mn;

ArrayList<Laptop> laptopList= new ArrayList<Laptop>();

String jsonString; JSONArray jsonArray;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_sortedbybrand);

unsortedlist = (ListView) findViewById(R.id.unsortedlist);

//data being retreived through SharedPreferences .

SharedPreferences sharedPreferences = getSharedPreferences("SHARED_PREF_NAME", Context.MODE_PRIVATE);

jsonString = sharedPreferences.getString("jsonString",null);

//conversion of jsonString to jsonArray

try {

jsonArray = new JSONArray(jsonString);

} catch (JSONException e) {

e.printStackTrace();

}

//sortedJSONArray would contain the sorted JSONObjects.

JSONArray sortedJsonArray = new JSONArray();

List<JSONObject> jsonValues = new ArrayList<JSONObject>();

for (int i = 0; i < jsonArray.length(); i++) {

try {

jsonValues.add(jsonArray.getJSONObject(i));

} catch (JSONException e) {

e.printStackTrace();

}

//The following section feeds the sorted data into the sortedJsonArray

Collections.sort( jsonValues, new Comparator<JSONObject>() {

//You can change "brand" with "price" if you want to sort by price

private static final String KEY_NAME = "brand";

@Override

public int compare(JSONObject a, JSONObject b) {

String valA = new String();

String valB = new String();

try {

valA = (String) a.get(KEY_NAME);

valB = (String) b.get(KEY_NAME);

}

catch (JSONException e) {

//do something

}

return valA.compareTo(valB);

//if you want to change the sort order, simply use the following:

//return -valA.compareTo(valB);

}

});

for (int i = 0; i < jsonArray.length(); i++) {

sortedJsonArray.put(jsonValues.get(i));

}

for(int i=0;i<sortedJsonArray.length();i++){

try {

JSONObject jsonObject = sortedJsonArray.getJSONObject(i);

String modelname = "Modelname:" + jsonObject.getString("modelname");

String ram = "Ram:" +jsonObject.getString("ram");

String os = "Os:" +jsonObject.getString("os");

String price = "Price:" + jsonObject.getString("price");

String screensize = "Screensize:" + jsonObject.getString("screensize");

String brand = "Brand:" + jsonObject.getString("brand");

//here,data from each JSONObject is copied to an Object of Class Laptop

Laptop laptop = new Laptop(modelname,ram,os,price,screensize,brand);

//The objects of class Laptop are thereby added into the ArrayList i.e laptopList. This will be used

//as we'll set the adapter to the listView.

laptopList.add(laptop);

} catch (JSONException e) {

e.printStackTrace();

}

//the list_layout and laptopList are passed to the Adapter here.

laptopAdapter=new LaptopAdapter(Sortedbybrand.this,R.layout.list_layout, laptopList);

unsortedlist.setAdapter(laptopAdapter);

laptopAdapter.notifyDataSetChanged();

}

Similarly, create another Empty Activity named Filterresults and configure the xml and java parts using the following codes.
Here’s the activity_filterresults.xml. It again contains the List view.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="com.example.manish.jsonfilterapp.Filterresults">

<ListView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:id="@+id/unsortedlist"

android:layout_alignParentBottom="true"

android:layout_alignParentRight="true"

android:layout_alignParentEnd="true"

</RelativeLayout>

Here’s the Filterresults.java. In here, the String containing the data will be fetched through SharedPreferences and then filtered through JSON by price being less than 40000.

package com.example.manish.jsonfilterapp;

import android.content.Context;

import android.content.Intent;

import android.content.SharedPreferences;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.widget.ListView;

import android.widget.Toast;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.ArrayList;

public class Filterresults extends AppCompatActivity {

ListView unsortedlist;

LaptopAdapter laptopAdapter;String mn;

ArrayList<Laptop> laptopList= new ArrayList<Laptop>();

String jsonString; JSONArray jsonArray;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_filterresults);

unsortedlist = (ListView) findViewById(R.id.unsortedlist);

//here, the data in String is being retreived.

SharedPreferences sharedPreferences = getSharedPreferences("SHARED_PREF_NAME", Context.MODE_PRIVATE);

jsonString = sharedPreferences.getString("jsonString",null);

//here, string to jsonArray conversion takes place

try {

jsonArray = new JSONArray(jsonString);

} catch (JSONException e) {

e.printStackTrace();

}

for(int i=0;i<jsonArray.length();i++){

try {

JSONObject jsonObject = jsonArray.getJSONObject(i);

String price1= jsonObject.getString("price");

//simple if statement allows only those jsonObjects to be added the laptopList where price is less than 40000.

if(Integer.parseInt(price1)<40000) {

String modelname = "Modelname:" + jsonObject.getString("modelname");

String ram = "Ram:" +jsonObject.getString("ram");

String os = "Os:" +jsonObject.getString("os");

String price = "Price:" + jsonObject.getString("price");

String screensize = "Screensize:" + jsonObject.getString("screensize");

String brand = "Brand:" + jsonObject.getString("brand");

Laptop laptop = new Laptop(modelname,ram,os,price,screensize,brand);

laptopList.add(laptop);

}

} catch (JSONException e) {

e.printStackTrace();

}

Toast.makeText(Filterresults.this,"Filtered as Price less than 40000", Toast.LENGTH_SHORT).show();

laptopAdapter=new LaptopAdapter(Filterresults.this,R.layout.list_layout, laptopList);

unsortedlist.setAdapter(laptopAdapter);

laptopAdapter.notifyDataSetChanged();

}

You are done with the activities here.
Finally, just add the internet permission to your AndroidManifest.xml and your Filter JSON app is complete.

<uses-permission android:name="android.permission.INTERNET" />

That’s it:). Run the app the wait to see the Toast saying data fetched Successfully.

If you are facing troubles then download my source code for this filter JSON project from below.

If you ran into some problems regarding this filter JSON Data tutorial, let me know in the comments section. I will try to sortout your problems ASAP.

Manish Kumar

Hello, I am Manish Kumar. I am a B.Tech Student at NIT Jamshedpur. Fortunately, I find myself quite passionate about Computers and Technology. Android is my most recent Crush.

Checkout these tutorials as well:

13 thoughts on “Filter JSON Data in Android Application using PHP and MySQL”

Ashok
September 7, 2016 at 12:54 pm
how to get values from json array of json array in android like below follow as:
{
“lesson_id”: “23”,
“lesson_name”: “Lesson 2”,
“lesson_sname”: “Alphabets”,
“lesson_case”: “Upper Case”,
“lesson_content”: “”,
“worksheets”: [{
“assignment_id”: “41”,
“assignment_name”: “UPPER CASE – A TO M”,
“assignment_file”: “”,
“assignment_video”: “”,
“is_assessment”: “no”
}, {
“assignment_id”: “42”,
“assignment_name”: “UPPER CASE- N TO Z”,
“assignment_file”: “”,
“assignment_video”: “”,
“is_assessment”: “no”
}, {
“assignment_id”: “43”,
“assignment_name”: “UPPER CASE- A TO Z”,
“assignment_file”: “”,
“assignment_video”: “”,
“is_assessment”: “no”
}, {
“assignment_id”: “44”,
“assignment_name”: “UPPER CASE ASSESSMENT”,
“assignment_file”: “2DamCreative18.pdf”,
“assignment_video”: “h”,
“is_assessment”: “yes”
}]
- Manish Kumar
  September 7, 2016 at 2:44 pm
  The main JSON Array you have mentioned must have a name .Let’s say its json1. Now json1 contains two json objects among which one is simple json object and another one is json array (worksheets) in the form of json obejct.
  Suppose you received whole of this data in response. Just parse it using Json object in the following way:-
  JSONObject js = new JSONObject(response);
  JSONArray jsonArray = js.getJSONArray(“json1”);
  Now you have your two json objects in jsonArray out of which one is a json obejct and another is itself an JSON array.
  In the code below you can fetch you jsonarray called worksheet.
  for(int i=0;i<json1.length();i++){
  if(i==1){
  JSONObject jsonObject = json1.getJSONObject(i);
  }
  }
  JSONArray worksheets = jsonObject.getJSONArray("worksheets");
Ness Tyagi
October 6, 2016 at 6:00 am
Hi Manish and Bilal,
Is it really a applying filer on activity, I was thinking this can be done using PreferenceActivity.
I need to implement filter like flipkart or olx in my application. I have searched a lot on web but did not found any desire result.
Suggest me, how can achieve this functionality please or post yourself a tutorial like flipkart or olx filter the json data as soon as possible.
Thanks in advance.
- Manish Kumar
  November 2, 2016 at 6:36 pm
  Definetly, the json data is getting filtered in different activities. As you run the project, on the home screen, look for the parameter on whose name the button’name is. Upon the button tap, it takes you to an activity where the data is filtered according to the parameter on the button.
Alexandre Conceição
October 16, 2016 at 3:28 am
Hi guys
I have a problem on file DbOperation.php in the following line:
$result = $stmt->get_result();
My browser show me this message:
Fatal error: Call to undefined method mysqli_stmt::get_result() in /home/u345942556/public_html/DbOperation.php on line 23
Sorry for my english.
- Manish Kumar
  November 2, 2016 at 6:28 pm
  the method $stmt->get_result() requires PHPverion>5.3 and also requires mysqlnd driver to be installed on your server. So it throws the above error. The alternate of this method can be seen below:-
  if($statement=$conn->prepare(“SELECT * FROM users WHERE token= ? LIMIT 1”)){
  $statement-> bind_param(‘s’,$cvalue);
  // Execute
  $statement-> execute();
  // Bind results
  $statement-> bind_result($token);
  // Fetch value
  while ( $statement-> fetch() ) {
  echo $token . “”;
  }
  // Close statement
  $statement-> close();
  }
  // Close entire connection
  $conn-> close();
  - Alexandre Conceição
    November 10, 2016 at 9:31 pm
    Ok
    But, where I implemente this method?
    Sorry, but I’m beginner.
Fotis Pegios
November 2, 2016 at 8:29 am
Hi Kumar,
I have the same problem with Alexandre Conseicao.
When running getData.php, browser shows me this message
Fatal error: Call to undefined method mysqli_stmt::get_result() in /home/u304133174/public_html/filterjson/DbOperation.php on line 29
Can you help me? I think it is because there is no get_result() function
in the DbOperation.php file you have uploaded in this tutorial.
Thanks in advance,
Fotis Pegios
Nikhil
February 24, 2017 at 1:46 pm
if($statement=$conn->prepare(“SELECT * FROM users WHERE token= ? LIMIT 1”)){
$statement-> bind_param(‘s’,$cvalue);
// Execute
$statement-> execute();
// Bind results
$statement-> bind_result($token);
// Fetch value
while ( $statement-> fetch() ) {
echo $token . “”;
}
// Close statement
$statement-> close();
}
// Close entire connection
$conn-> close();
where to put this method?
when i put this in my dboperation.php in getlaptops function,i get error syntax error, unexpected ‘users’ (T_STRING).What to do to correct this error?
ana
March 8, 2017 at 5:25 pm
I want search results to be clickable and on click detailes presented. How can i do that?
Akeem
September 12, 2017 at 4:12 pm
for (int i = 0; i < jsonArray.length(); i++) {
try {
String f;
JSONObject jsonObject = jsonArray.getJSONObject(i);
String m = jsonObject.getString("modelname");
   if(m=="ASUS-13431") {

                    String modelname = "Modelname:" + jsonObject.getString("modelname");
                    String ram = "Ram:" +jsonObject.getString("ram");
                    String os = "Os:" +jsonObject.getString("os");
                    String price = "Price:"  + jsonObject.getString("price");
                    String screensize = "Screensize:" + jsonObject.getString("screensize");
                    String brand = "Brand:" + jsonObject.getString("brand");
                    Laptop laptop = new Laptop(modelname,ram,os,price,screensize,brand);
                    laptopList.add(laptop);
                }
I'm trying to sort by modelname but I'm not getting any output
Sean Grove
November 20, 2017 at 11:29 am
Hi there.
Really need you to contact me. need your expert help.
Pasquale
June 3, 2018 at 7:42 am
Hi,
Thank you to share your work. I tried to do the same but Android Studio 3.1 seems not work properly.
It returns : Could not find method compile() for arguments [com.android.volley:volley:1.0.0] on object of type org.gradle.api.internal.artifacts.dsl.dependencies.DefaultDependencyHandler.
How can I fix it? Thank you

Filter JSON Data in Android Application using PHP and MySQL

Setting the server for the project

Creating PHP Scripts

Creating an Android Project for our Filter JSON App

Creating different activites for the Results

Related

Checkout these tutorials as well:

13 thoughts on “Filter JSON Data in Android Application using PHP and MySQL”

Leave a Comment Cancel reply
