Dagger 2 Android Example using Retrofit : Injecting Dependency

Struggling with Dagger 2? Don’t know how to implement it in your Android Project? Don’t worry, here am I with this Dagger 2 Android Example.

So, today in this Dagger 2 Android Example we will modify one of our previous project to learn the Dependency Injection Architecture.

The post is for beginners, who just want to get into the design patterns.

In this tutorial, we will work on Retrofit Android Example project that we created in one of the earlier posts. So it is highly recommended that you should go through that tutorial first and get the source code of that project.

Table of Contents

1 An Updated Dependency Injection Tutorial using Dagger 2
2 What is Dependency Injection?
3 What is Dagger 2?
4 Working with Dagger 2
5 Dagger 2 Android Example
6 Dagger 2 Android Example Source Code
- 6.1 Related

An Updated Dependency Injection Tutorial using Dagger 2

Here is an update guys, but in the form of a video tutorial. You can check this video to understand how to use the latest Dagger2 in your Android Project.

What is Dependency Injection?

Dependency Injection is a design pattern, or you can say a concept of Object Oriented Programming, where we don’t create an object of another class inside a class using the new keyword (for Java). Instead, we supply the needed object from outside.

In the previous post, Android Dependency Injection we learned the conceptual thing about Dependency Injection in detail. So if you are entirely unaware of this stuff, you should go through the previous tutorial first.

What is Dagger 2?

Dagger is a fully static, compile-time dependency injection framework for both Java and Android. It is an adaptation of an earlier version created by Square and now maintained by Google.

I guess Dagger 2 is the most popular dependency injection framework currently available. And it is now maintained by Google, so you should learn it.

Working with Dagger 2

Before moving ahead in our Android Project, let’s understand first that how we work with Dagger 2.

So we have three major things in Dagger.

#1 Dependency Provider

Dependencies are the objects that we need to instantiate inside a class. And we learned before that we cannot instantiate a class inside a class. Instead, we need to supply it from outside. So the person who will provide us the objects that are called dependencies is called Dependency Provider.

Confused? Don’t worry it is not a real person :P. It is a regular class that will provide the dependency.

And in dagger2 the class that you want to make a Dependency Provider, you need to annotate it with the @Module annotation.

And inside the class, you will create methods that will provide the objects (or dependencies). With dagger2 we need to annotate these methods with the @Provides annotation.

So remember the annotations @Module and @Provides.

#2 Dependency Consumer

Now, we have the dependency consumer; it is a class where we need to instantiate the objects. But now we don’t need to instantiate it with the new keyword (I am assuming java here). We do not even need to get it as an argument. But dagger will provide the dependency, and for this, we just need to annotate the object declaration with @Inject.

#3 Component

Finally, we need some connection between our dependency provider and dependency consumer.
For this, we will create an interface by annotating it with @Component. And rest of the thing will be done by Dagger.

Is everything confusing? Don’t worry you will get things cleared after implementing in the Android Project so keep reading.

Dagger 2 Android Example

Now let’s refactor the application that we created in the earlier Retrofit Example Tutorial.

This time we will not create a new Project, so just go to the following link and download the Source Code, then open it in your Android Studio. And then you are ready to move ahead.

Retrofit Android Example – Fetching JSON

Adding Dagger2 to Project

The first step is obvious that we need to add the Dagger2 to our project.

So in the project that you opened go to app level build.gradle and inside the dependencies block add the lines shown below.

dependencies {

compile fileTree(include: ['*.jar'], dir: 'libs')

androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {

exclude group: 'com.android.support', module: 'support-annotations'

})

compile 'com.android.support:appcompat-v7:26.+'

compile 'com.android.support.constraint:constraint-layout:1.0.2'

compile 'com.squareup.retrofit2:retrofit:2.3.0'

compile 'com.squareup.retrofit2:converter-gson:2.2.0'

//these two lines are added

compile 'com.google.dagger:dagger:2.13'

annotationProcessor 'com.google.dagger:dagger-compiler:2.13'

testCompile 'junit:junit:4.12'

}

Sync the project with gradle.

Creating Modules

For this project, we need two modules. The first one is the App Module, and the Next one is API Module.

App Module

This module will provide the Context. You already know that we need Context everywhere, and in Retrofit as well we need the context object. And as the DI rule says we need an outsider to supply the objects, so here we will create this module that will give us the Context.

Create a new class named AppModule and write the following code.

package net.simplifiedlearning.retrofitexample;

import android.app.Application;

import javax.inject.Singleton;

import dagger.Module;

import dagger.Provides;

/**

* Created by Belal on 12/2/2017.

@Module

class AppModule {

private Application mApplication;

AppModule(Application mApplication) {

this.mApplication = mApplication;

}

@Provides

@Singleton

Application provideApplication() {

return mApplication;

}

The above code is straightforward, and we just use a new thing @Singleton. In dagger, we have this annotation, when we want a Single object. I guess you already know about Singleton. With the dagger, you just need to annotate @Singleton when you want a single instance only.

API Module

We need many objects in this Module. You might already know that for Retrofit fit we need a bunch of things.
We need Cache, Gson, OkHttpClient and the Retrofit itself. So we will define the providers for these objects here in this module.

So, create the class named AppModule and write the following code.

package net.simplifiedlearning.retrofitexample;

import android.app.Application;

import com.google.gson.FieldNamingPolicy;

import com.google.gson.Gson;

import com.google.gson.GsonBuilder;

import javax.inject.Singleton;

import dagger.Module;

import dagger.Provides;

import okhttp3.Cache;

import okhttp3.OkHttpClient;

import retrofit2.Retrofit;

import retrofit2.converter.gson.GsonConverterFactory;

/**

* Created by Belal on 12/2/2017.

@Module

class ApiModule {

String mBaseUrl;

ApiModule(String mBaseUrl) {

this.mBaseUrl = mBaseUrl;

}

@Provides

@Singleton

Cache provideHttpCache(Application application) {

int cacheSize = 10 * 1024 * 1024;

Cache cache = new Cache(application.getCacheDir(), cacheSize);

return cache;

}

@Provides

@Singleton

Gson provideGson() {

GsonBuilder gsonBuilder = new GsonBuilder();

gsonBuilder.setFieldNamingPolicy(FieldNamingPolicy.LOWER_CASE_WITH_UNDERSCORES);

return gsonBuilder.create();

}

@Provides

@Singleton

OkHttpClient provideOkhttpClient(Cache cache) {

OkHttpClient.Builder client = new OkHttpClient.Builder();

client.cache(cache);

return client.build();

}

@Provides

@Singleton

Retrofit provideRetrofit(Gson gson, OkHttpClient okHttpClient) {

return new Retrofit.Builder()

.addConverterFactory(GsonConverterFactory.create(gson))

.baseUrl(mBaseUrl)

.client(okHttpClient)

.build();

}

We have done with the Modules. Now let’s define the Component and then we will inject the objects.

Building Component

Now, we will create the Component.

package net.simplifiedlearning.retrofitexample;

import javax.inject.Singleton;

import dagger.Component;

/**

* Created by Belal on 12/2/2017.

@Singleton

@Component(modules = {AppModule.class, ApiModule.class})

public interface ApiComponent {

void inject(MainActivity activity);

}

So you can see we will inject in the MainActivity. We also define all the modules using the @Component annotation as you can see in the code.

Before moving ahead Rebuild your project.

Now create a class named MyApplication. In this class we will build the ApiComponent.

package net.simplifiedlearning.retrofitexample;

import android.app.Application;

/**

* Created by Belal on 12/2/2017.

public class MyApplication extends Application {

private ApiComponent mApiComponent;

@Override

public void onCreate() {

super.onCreate();

mApiComponent = DaggerApiComponent.builder()

.appModule(new AppModule(this))

.apiModule(new ApiModule("https://simplifiedcoding.net/demos/"))

.build();

}

public ApiComponent getNetComponent() {

return mApiComponent;

}

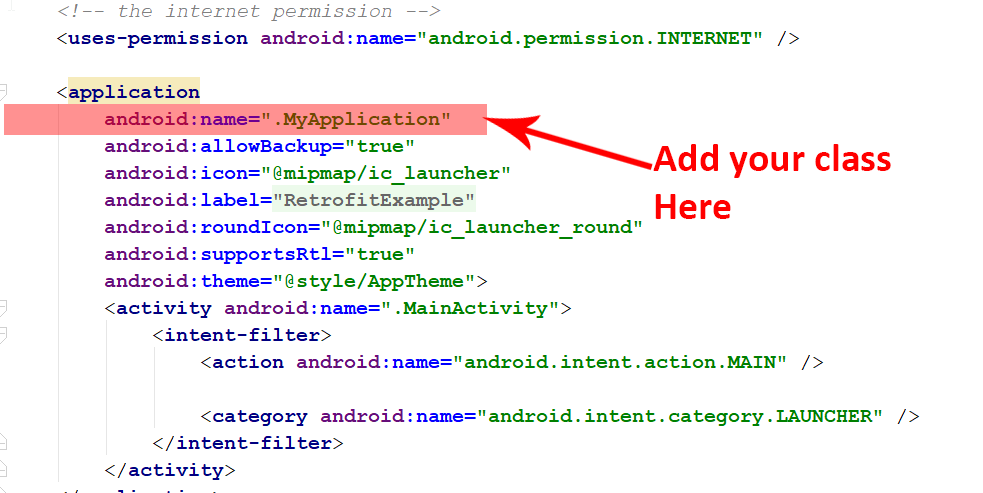

Note that we are using the same project, with no additional changes. So make sure you are working, on the same project. The URL we are using in the above code to fetch JSON is working and you can use the same.
So, we have our API component, but we need to instantiate this class when our application launches. And for this, we need to define it inside our App Manifest file. So open your AndroidManifest.xml and modify it as shown below.

Injecting Dependency with Dagger 2

Now finally, we can inject the dependency.

Come inside MainActivity.java and modify it as below.

package net.simplifiedlearning.retrofitexample;

import android.os.Bundle;

import android.support.v7.app.AppCompatActivity;

import android.widget.ArrayAdapter;

import android.widget.ListView;

import android.widget.Toast;

import java.util.List;

import javax.inject.Inject;

import retrofit2.Call;

import retrofit2.Callback;

import retrofit2.Response;

import retrofit2.Retrofit;

public class MainActivity extends AppCompatActivity {

//injecting retrofit

@Inject Retrofit retrofit;

ListView listView;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

((MyApplication) getApplication()).getNetComponent().inject(this);

listView = (ListView) findViewById(R.id.listViewHeroes);

getHeroes();

}

private void getHeroes() {

Api api = retrofit.create(Api.class);

Call<List<Hero>> call = api.getHeroes();

call.enqueue(new Callback<List<Hero>>() {

@Override

public void onResponse(Call<List<Hero>> call, Response<List<Hero>> response) {

List<Hero> heroList = response.body();

String[] heroes = new String[heroList.size()];

for (int i = 0; i < heroList.size(); i++) {

heroes[i] = heroList.get(i).getName();

}

listView.setAdapter(new ArrayAdapter<String>(getApplicationContext(), android.R.layout.simple_list_item_1, heroes));

}

@Override

public void onFailure(Call<List<Hero>> call, Throwable t) {

Toast.makeText(getApplicationContext(), t.getMessage(), Toast.LENGTH_SHORT).show();

}

});

}

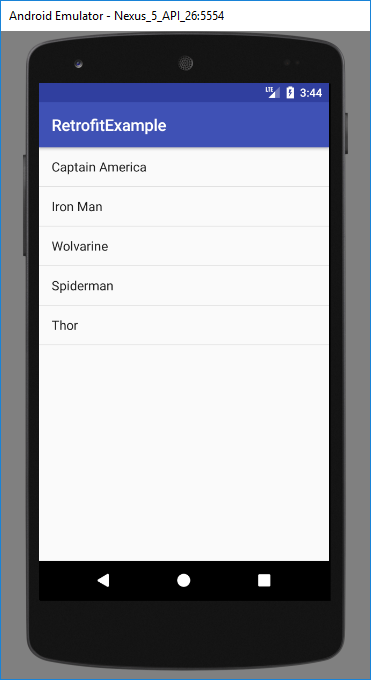

Now you can try running your application.

So, it is working fine.

You might be thinking “WHAT THE HELL? I did all these big changes to do nothing”. 😛 But trust me it makes life easier when working on some big projects.

What we learned in this post is following an architecture. You will get the usefulness of this thing when I post about some Advanced Android App Design Pattern like MVP or MVVM.

Dagger 2 Android Example Source Code

So, guys, I hope you understood the basic idea that how we work with Dagger 2. But still, if you are having any trouble following the codes you can get my source code from GitHub.
To get the link, you need to unlock it using one of the SHARE buttons.

Dagger 2 Android Example Source Code

So that’s all for this Dagger 2 Android Example friends. I hope you found it useful if you did, then please SHARE this post with your friends.
If you have any question regarding this Dagger 2 Android Example, then leave your comments, and I will try to help you. Thank You 🙂
