Volley with Kotlin using PHP and MySQL in Android Studio 3.0

Google officially announced Kotlin Support at Google I/O 2017. If you haven’t heard it yet, Kotlin is the brand new language for Android Application Development. It is developed by IntelliJ IDEA the same company that has given the Android Studio IDE. Today in this post we will learn how we can perform networking using Volley with Kotlin.

If you want to learn Kotlin from starting then go through this playlist.

Before going further you should get the Android Studio 3.0 Canary 1. You can also add Kotlin Plugin to your existing Android Studio.

So lets start. Again we will start with building database and php script. This time I will do it little differently. As we have already seen it many times. Still for building secured RESTful APIs using SLIM Framework you can check this tutorial.

Table of Contents

1 Creating Database
2 Creating Web Services
3 Making Android Project with Kotlin

Creating Database

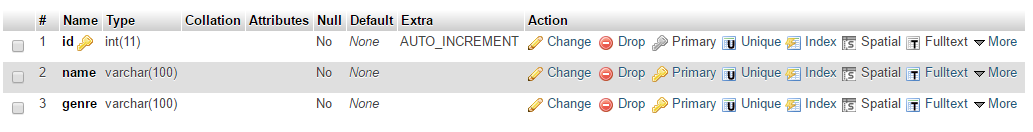

Open PhpMyAdmin and create the following table.

Thats it for the database now we will create the PHP project.

Creating Web Services

Now come inside htdocs folder (if you are using xampp) and create your project folder. Inside the project folder again create two folders named includes and v1.

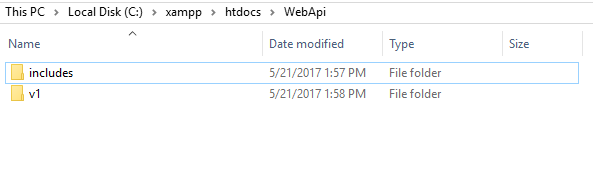

As you can see in the image I have my project directory named WebApi and inside that I have includes and v1.
Now come inside includes and create a new PHP file named Constants.php.

<?php

define('DB_HOST','localhost');

define('DB_USERNAME','root');

define('DB_PASSWORD','');

define('DB_NAME', 'simplifiedcoding');

You should change the values accordingly here.

Connecting to Database

Now create one more file here named DbConnect.php and write the following code.

<?php

class DbConnect

{

//Variable to store database link

private $con;

//Class constructor

function __construct()

{

}

//This method will connect to the database

function connect()

{

//Including the constants.php file to get the database constants

include_once dirname(__FILE__) . '/Constants.php';

//connecting to mysql database

$this->con = new mysqli(DB_HOST, DB_USERNAME, DB_PASSWORD, DB_NAME);

//Checking if any error occured while connecting

if (mysqli_connect_errno()) {

echo "Failed to connect to MySQL: " . mysqli_connect_error();

return null;

}

//finally returning the connection link

return $this->con;

}

Performing Database Operation

Now we need another class to handle database operations. So create a file named DbOperation.php.

<?php

class DbOperation

{

private $con;

function __construct()

{

require_once dirname(__FILE__) . '/DbConnect.php';

$db = new DbConnect();

$this->con = $db->connect();

}

//adding a record to database

public function createArtist($name, $genre){

$stmt = $this->con->prepare("INSERT INTO artists (name, genre) VALUES (?, ?)");

$stmt->bind_param("ss", $name, $genre);

if($stmt->execute())

return true;

return false;

}

//fetching all records from the database

public function getArtists(){

$stmt = $this->con->prepare("SELECT id, name, genre FROM artists");

$stmt->execute();

$stmt->bind_result($id, $name, $genre);

$artists = array();

while($stmt->fetch()){

$temp = array();

$temp['id'] = $id;

$temp['name'] = $name;

$temp['genre'] = $genre;

array_push($artists, $temp);

}

return $artists;

}

Handling API Calls

Now come inside v1 folder and create a file named index.php, here we will handle all the API calls.

<?php

//adding dboperation file

require_once '../includes/DbOperation.php';

//response array

$response = array();

//if a get parameter named op is set we will consider it as an api call

if(isset($_GET['op'])){

//switching the get op value

switch($_GET['op']){

//if it is add artist

//that means we will add an artist

case 'addartist':

if(isset($_POST['name']) && isset($_POST['genre'])){

$db = new DbOperation();

if($db->createArtist($_POST['name'], $_POST['genre'])){

$response['error'] = false;

$response['message'] = 'Artist added successfully';

}else{

$response['error'] = true;

$response['message'] = 'Could not add artist';

}

}else{

$response['error'] = true;

$response['message'] = 'Required Parameters are missing';

}

break;

//if it is getartist that means we are fetching the records

case 'getartists':

$db = new DbOperation();

$artists = $db->getArtists();

if(count($artists)<=0){

$response['error'] = true;

$response['message'] = 'Nothing found in the database';

}else{

$response['error'] = false;

$response['artists'] = $artists;

}

break;

default:

$response['error'] = true;

$response['message'] = 'No operation to perform';

}

}else{

$response['error'] = false;

$response['message'] = 'Invalid Request';

}

//displaying the data in json

echo json_encode($response);

Testing the API Calls

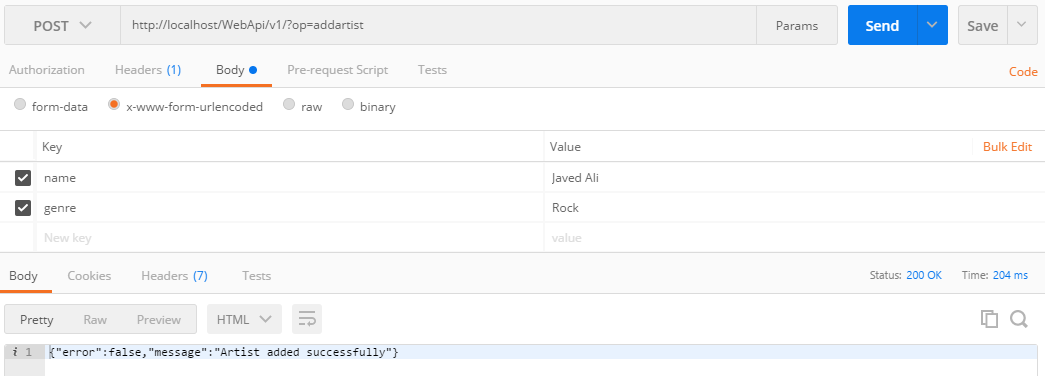

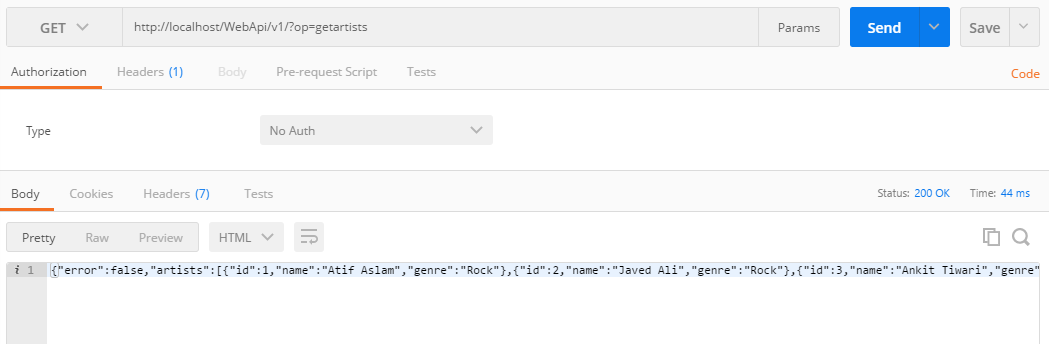

Again I am using POSTMAN to test the API.

So as you can see the API is working fine. You can get the source code from the below link.

Making Android Project with Kotlin

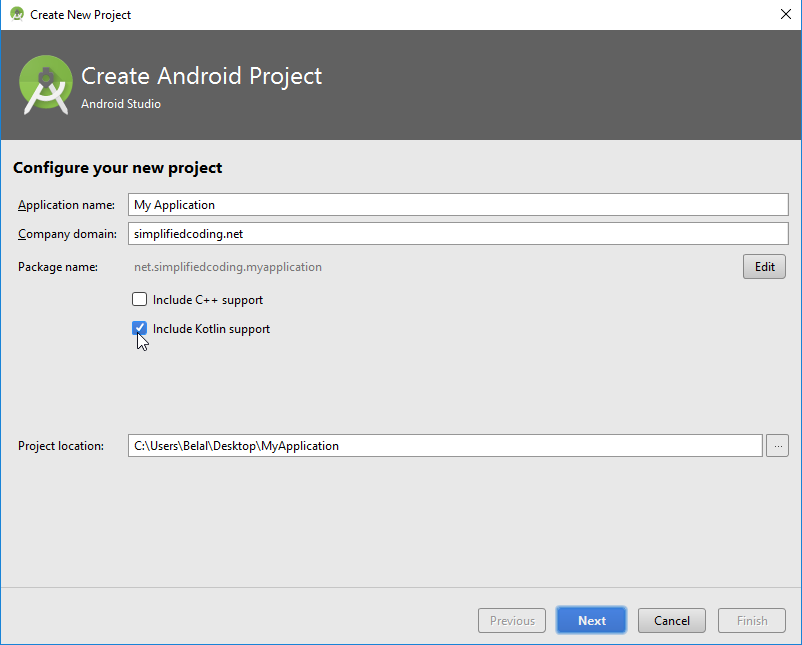

Now create a new Android Studio project. Just remember you have to mark the Include Kotlin Support while creating the project.

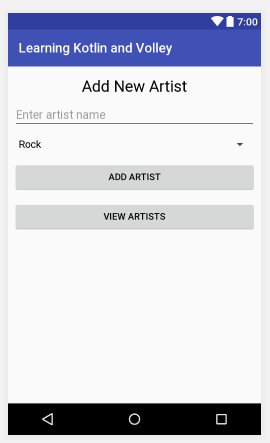

Now inside activity_main.xml create the following UI.

You can use the following XML code for this.

<?xml version="1.0" encoding="utf-8"?>

<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="net.simplifiedcoding.firstkotlinapp.MainActivity">

<TextView

android:id="@+id/textView2"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Add New Artist"

android:textAppearance="@style/TextAppearance.AppCompat.Headline"

tools:layout_editor_absoluteX="112dp"

tools:layout_editor_absoluteY="16dp"

app:layout_constraintTop_toTopOf="parent"

app:layout_constraintStart_toStartOf="parent"

android:layout_marginTop="16dp"

app:layout_constraintEnd_toEndOf="parent" />

<EditText

android:id="@+id/editTextArtistName"

android:layout_width="0dp"

android:layout_height="wrap_content"

android:layout_marginEnd="8dp"

android:layout_marginStart="8dp"

android:layout_marginTop="8dp"

android:ems="10"

android:hint="Enter artist name"

android:inputType="textPersonName"

app:layout_constraintEnd_toEndOf="parent"

app:layout_constraintStart_toStartOf="parent"

app:layout_constraintTop_toBottomOf="@+id/textView2"

tools:layout_editor_absoluteX="8dp"

tools:layout_editor_absoluteY="53dp" />

<Spinner

android:id="@+id/spinnerGenre"

android:layout_width="0dp"

android:layout_height="wrap_content"

android:entries="@array/genres"

tools:layout_editor_absoluteX="8dp"

tools:layout_editor_absoluteY="107dp"

android:layout_marginTop="11dp"

app:layout_constraintTop_toBottomOf="@+id/editTextArtistName"

app:layout_constraintEnd_toEndOf="parent"

app:layout_constraintStart_toStartOf="parent"

android:layout_marginStart="8dp"

android:layout_marginEnd="8dp" />

<Button

android:id="@+id/buttonAddArtist"

android:layout_width="0dp"

android:layout_height="wrap_content"

android:layout_marginEnd="8dp"

android:layout_marginStart="8dp"

android:layout_marginTop="14dp"

android:text="Add Artist"

app:layout_constraintEnd_toEndOf="parent"

app:layout_constraintStart_toStartOf="parent"

app:layout_constraintTop_toBottomOf="@+id/spinnerGenre"

tools:layout_editor_absoluteX="8dp"

tools:layout_editor_absoluteY="145dp" />

<Button

android:id="@+id/buttonViewArtist"

android:layout_width="0dp"

android:layout_height="wrap_content"

android:layout_marginEnd="8dp"

android:layout_marginStart="8dp"

android:layout_marginTop="12dp"

android:text="View Artists"

app:layout_constraintEnd_toEndOf="parent"

app:layout_constraintStart_toStartOf="parent"

app:layout_constraintTop_toBottomOf="@+id/buttonAddArtist"

tools:layout_editor_absoluteX="8dp"

tools:layout_editor_absoluteY="205dp" />

</android.support.constraint.ConstraintLayout>

For the spinner entries define the following array in your strings.xml file.

<item>Bollywood</item>

<item>Hollywood</item>

</array>

Now we will perform the Add operation using API Call.

Adding Volley to the Project

Come inside app level build.gradle file and add the following dependencies.

compile 'com.android.volley:volley:1.0.0'

Creating a Singleton Class for Volley

If the application uses something frequently using a Single instance of that is a good idea. So here we will create a Singleton class for volley requests.
Inside your package create a Kotlin file named VolleySingleton.kt and write the following code.

package net.simplifiedcoding.firstkotlinapp

import android.app.Application

import com.android.volley.Request

import com.android.volley.RequestQueue

import com.android.volley.toolbox.Volley

/**

* Created by Belal on 5/16/2017.

class VolleySingleton : Application() {

override fun onCreate() {

super.onCreate()

instance = this

}

val requestQueue: RequestQueue? = null

get() {

if (field == null) {

return Volley.newRequestQueue(applicationContext)

}

return field

}

fun <T> addToRequestQueue(request: Request<T>) {

request.tag = TAG

requestQueue?.add(request)

}

companion object {

private val TAG = VolleySingleton::class.java.simpleName

@get:Synchronized var instance: VolleySingleton? = null

private set

}

Now we need to add the above class in the manifest.

<uses-permission android:name="android.permission.INTERNET" />

<application

android:allowBackup="true"

android:name=".VolleySingleton"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/AppTheme">

As you can see I have also added the internet permission as it is required.

Creating and Object for holding EndPoints

Create a new Kotlin file named EndPoints.kt and write the following code.

package net.simplifiedcoding.firstkotlinapp

/**

* Created by Belal on 5/21/2017.

object EndPoints {

private val URL_ROOT = "http://192.168.1.106/WebApi/v1/?op="

val URL_ADD_ARTIST = URL_ROOT + "addartist"

val URL_GET_ARTIST = URL_ROOT + "getartists"

}

You can see we are storing the API URLs here. Make sure you have changed the IP accordingly.

Adding Data to MySQL using Volley with Kotlin

Come inside MainActivity.kt and write the following code.

package net.simplifiedcoding.firstkotlinapp

import android.content.Intent

import android.os.Bundle

import android.support.v7.app.AppCompatActivity

import android.widget.EditText

import android.widget.Spinner

import android.widget.Toast

import com.android.volley.AuthFailureError

import com.android.volley.Request

import com.android.volley.Response

import com.android.volley.VolleyError

import com.android.volley.toolbox.StringRequest

import org.json.JSONException

import org.json.JSONObject

class MainActivity : AppCompatActivity() {

//edittext and spinner

private var editTextArtistName: EditText? = null

private var spinnerGenre: Spinner? = null

override fun onCreate(savedInstanceState: Bundle?) {

super.onCreate(savedInstanceState)

setContentView(R.layout.activity_main)

//getting it from xml

editTextArtistName = findViewById(R.id.editTextArtistName) as EditText

spinnerGenre = findViewById(R.id.spinnerGenre) as Spinner

//adding a click listener to button

findViewById(R.id.buttonAddArtist).setOnClickListener { addArtist() }

//in the second button click

//opening the activity to display all the artist

//it will give error as we dont have this activity so remove this part for now to run the app

findViewById(R.id.buttonViewArtist).setOnClickListener {

val intent = Intent(applicationContext, ViewArtistsActivity::class.java)

startActivity(intent)

}

//adding a new record to database

private fun addArtist() {

//getting the record values

val name = editTextArtistName?.text.toString()

val genre = spinnerGenre?.selectedItem.toString()

//creating volley string request

val stringRequest = object : StringRequest(Request.Method.POST, EndPoints.URL_ADD_ARTIST,

Response.Listener<String> { response ->

try {

val obj = JSONObject(response)

Toast.makeText(applicationContext, obj.getString("message"), Toast.LENGTH_LONG).show()

} catch (e: JSONException) {

e.printStackTrace()

}

object : Response.ErrorListener {

override fun onErrorResponse(volleyError: VolleyError) {

Toast.makeText(applicationContext, volleyError.message, Toast.LENGTH_LONG).show()

}

}) {

@Throws(AuthFailureError::class)

override fun getParams(): Map<String, String> {

val params = HashMap<String, String>()

params.put("name", name)

params.put("genre", genre)

return params

}

//adding request to queue

VolleySingleton.instance?.addToRequestQueue(stringRequest)

}

Now run the application and test.

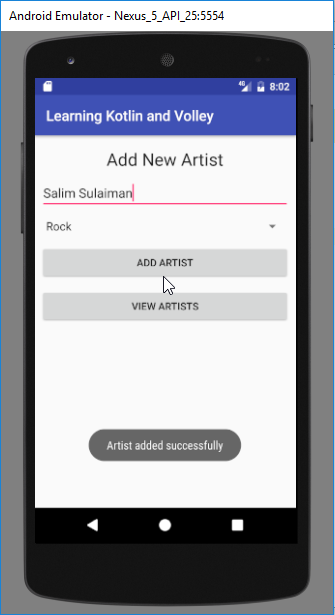

You can see we got the success message. You can check the database the record should be there.
Now we will try the second API call where we are fetching the values.

Fetching Data from MySQL using Volley with Kotlin

Create a new Activity named ViewArtistsActivity and in the layout file write the following code.

<?xml version="1.0" encoding="utf-8"?>

<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="net.simplifiedcoding.firstkotlinapp.ViewArtistsActivity">

<ListView

android:id="@+id/listViewArtists"

android:layout_width="match_parent"

android:layout_height="wrap_content">

</ListView>

</android.support.constraint.ConstraintLayout>

As you can see we have only a single list here to display all the artists in a list. Now we also need a custom layout file for the list.
So create a layout file named layout_list_artist.xml and write the following code.

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="vertical" android:layout_width="match_parent"

android:layout_height="match_parent">

<TextView

android:text="Atif Aslam"

android:textAppearance="@style/Base.TextAppearance.AppCompat.Large"

android:id="@+id/textViewName"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

<TextView

android:text="Rock"

android:textAppearance="@style/Base.TextAppearance.AppCompat.Medium"

android:id="@+id/textViewGenre"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</LinearLayout>

Here we have only Two TextViews for name and genre.
Now we will define the model for the Artist.
So again create a new Kotlin class named Artist and write the following code.

package net.simplifiedcoding.firstkotlinapp

/**

* Created by Belal on 5/21/2017.

class Artist(val name: String, val genre: String)

Now we will define our custom adapter. So we need one more class. I have created a class named ArtistList.

package net.simplifiedcoding.firstkotlinapp

import android.app.Activity

import android.view.View

import android.view.ViewGroup

import android.widget.ArrayAdapter

import android.widget.TextView

/**

* Created by Belal on 5/21/2017.

class ArtistList(private val context: Activity, internal var artists: List<Artist>) : ArrayAdapter<Artist>(context, R.layout.layout_list_artist, artists) {

override fun getView(position: Int, convertView: View?, parent: ViewGroup): View {

val inflater = context.layoutInflater

val listViewItem = inflater.inflate(R.layout.layout_list_artist, null, true)

val textViewName = listViewItem.findViewById(R.id.textViewName) as TextView

val textViewGenre = listViewItem.findViewById(R.id.textViewGenre) as TextView

val artist = artists[position]

textViewName.text = artist.name

textViewGenre.text = artist.genre

return listViewItem

}

Now come inside ViewArtistsActivity and write the following code.

package net.simplifiedcoding.firstkotlinapp

import android.os.Bundle

import android.support.v7.app.AppCompatActivity

import android.widget.ListView

import android.widget.Toast

import com.android.volley.Request

import com.android.volley.Response

import com.android.volley.toolbox.StringRequest

import com.android.volley.toolbox.Volley

import org.json.JSONException

import org.json.JSONObject

class ViewArtistsActivity : AppCompatActivity() {

private var listView: ListView? = null

private var artistList: MutableList<Artist>? = null

override fun onCreate(savedInstanceState: Bundle?) {

super.onCreate(savedInstanceState)

setContentView(R.layout.activity_view_artists)

listView = findViewById(R.id.listViewArtists) as ListView

artistList = mutableListOf<Artist>()

loadArtists()

}

private fun loadArtists() {

val stringRequest = StringRequest(Request.Method.GET,

EndPoints.URL_GET_ARTIST,

Response.Listener<String> { s ->

try {

val obj = JSONObject(s)

if (!obj.getBoolean("error")) {

val array = obj.getJSONArray("artists")

for (i in 0..array.length() - 1) {

val objectArtist = array.getJSONObject(i)

val artist = Artist(

objectArtist.getString("name"),

objectArtist.getString("genre")

)

artistList!!.add(artist)

val adapter = ArtistList(this@ViewArtistsActivity, artistList!!)

listView!!.adapter = adapter

}

} else {

Toast.makeText(getApplicationContext(), obj.getString("message"), Toast.LENGTH_LONG).show()

}

} catch (e: JSONException) {

e.printStackTrace()

}

}, Response.ErrorListener { volleyError -> Toast.makeText(applicationContext, volleyError.message, Toast.LENGTH_LONG).show() })

val requestQueue = Volley.newRequestQueue(this)

requestQueue.add<String>(stringRequest)

}

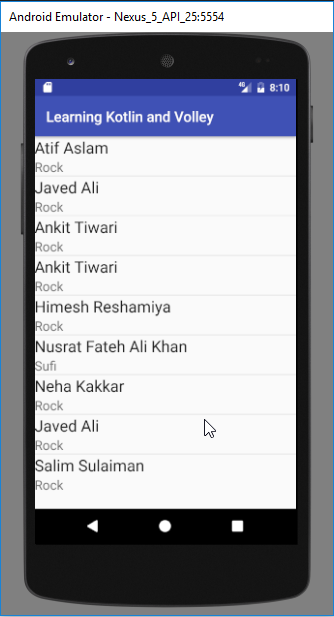

Now try running the application again.

Bingo! it is working fine. So this was volley with kotlin.
You can get the source code for this volley with kotlin example from below.

So thats all for this Volley with Kotlin example friends. You may have realized that Kotlin code is lesser as compared to the equivalent Java code. So try practicing Kotlin and once you are used to it you will find it much easier than Java. We will post more about Kotlin from scratch. Till then, please SHARE this post if you found it useful. Thank You 🙂

Belal Khan

Hi, my name is Belal Khan and I am a Google Developers Expert (GDE) for Android. The passion of teaching made me create this blog. If you are an Android Developer, or you are learning about Android Development, then I can help you a lot with Simplified Coding.

Checkout these tutorials as well:

18 thoughts on “Volley with Kotlin using PHP and MySQL in Android Studio 3.0”

CiqwanStudio
May 22, 2017 at 4:53 am
thank belal,,,
I try this tutorial with Kotlin…
Lucas
May 23, 2017 at 3:30 am
Hi, I try to run your code and does not work, I did look all the code and the connection server and all is ok.
- Lucas
  May 23, 2017 at 3:31 am
  The Volley dont show any error, i am confused
  - aashutosh rana
    June 15, 2020 at 4:07 pm
    use the try catch block and show the toast message with number like “error 1”, “error 2” etc and then see the which part is giving error.
    i think you will do it
- suhas wagre
  November 22, 2017 at 6:13 am
  try adding this in mannifest file “android:name=”.VolleySingleton”
sharon
May 23, 2017 at 12:04 pm
sir if you possible upload Room Persistence Library inandriod i/o 2017
Anand Baraik
May 23, 2017 at 4:41 pm
This is fantastic brother thank you for this tutorial. Ranchi rocks
Ali
May 31, 2017 at 9:06 pm
Thanks a lot, great tutorial
Bryan
June 23, 2017 at 3:14 pm
Hello I try your code and it works almost perfect ! However; I have a problem to write in my dataBase, I try to use POSTMAN and with POSTMAN it works perfectly so I guess it comes from the Kotlin code and particularly this part of code :
val stringRequest = object : StringRequest(Request.Method.POST, EndPoints.URL_ADD_ARTIST,
Response.Listener { response ->
try {
val obj = JSONObject(response)
Toast.makeText(applicationContext, obj.getString(“message”), Toast.LENGTH_LONG).show()
} catch (e: JSONException) {
e.printStackTrace()
}
},
object : Response.ErrorListener {
override fun onErrorResponse(volleyError: VolleyError) {
Toast.makeText(applicationContext, volleyError.message, Toast.LENGTH_LONG).show()
}
}) {
@Throws(AuthFailureError::class)
override fun getParams(): Map {
val params = HashMap()
params.put(“name”, name)
params.put(“genre”, genre)
return params
}
}
My problem is this when I click on the button “ADD ARTIST” I have nothing it is like if there is nothing. Someone have an idea to solve this ?
Thank you again ! 🙂
Julez
September 27, 2017 at 8:04 am
Hi I have the same problem:(
Do you found any solution?
Martin
November 20, 2017 at 1:49 pm
Hi, I have the same problem!
Do you found any solution?
Yayan Agustyan
December 29, 2017 at 8:07 am
Hallo Belal,
in volley with java, I could put headers.
in kotlin ? how to do that ?
java :
@Override
public Map getHeaders() throws AuthFailureError {
HashMap headers = new HashMap();
String auth = Config.X_TOKEN;
headers.put(“x-token”, auth);
return headers;
}
kotlin ??
Arvina Kori
January 31, 2018 at 1:05 pm
Hey belal, it’s really working. but can please tell how to delete data from database in the kotlin
Saikyo
February 7, 2018 at 8:18 am
does kotlin works with sql server?
Nihat
February 9, 2018 at 1:51 pm
Thanks for this example. Can u add upload and show Artist photo in this app
viyand
July 1, 2018 at 5:35 am
Hey buddy, I need your help like every emergently, I have searched the interenet like all. This app
is so cool. Please tell me how to delete and update too
John
July 23, 2018 at 11:01 am
Hi Belal
Thanks for the videos so far, keep up the good work!
I’m trying to build, however I get this error, any ideas?
…Type inference failed: Not enough information to infer parameter T in fun findViewById(p0: Int): T!…
Also can’t the find the video to this example neither the code, can you help?
Thanks
JonBonBon
August 4, 2018 at 9:34 pm
Hi Belal,
Great Tutorial, everything seems to work fine.
Do you know if I can use the same method of viewing the artist list but within a fragment?
I have changed the ArtistList.kt file to reference a Fragment but I am getting an error on the ArrayAdapter having the wrong context…
Any ideas?
Thanks, Jon

Volley with Kotlin using PHP and MySQL in Android Studio 3.0

Creating Database

Creating Web Services

Connecting to Database

Performing Database Operation

Handling API Calls

Testing the API Calls

Making Android Project with Kotlin

Adding Volley to the Project

Creating a Singleton Class for Volley

Creating and Object for holding EndPoints

Adding Data to MySQL using Volley with Kotlin

Fetching Data from MySQL using Volley with Kotlin

Related

Checkout these tutorials as well:

18 thoughts on “Volley with Kotlin using PHP and MySQL in Android Studio 3.0”

Leave a Comment Cancel reply
